Motorcycle Parts & Accessories

Ww-1007 Bws-125 Non-Asbestos Motorcycle Drum Shoe Pad Brake

  • Type:Motorcycle Brake
  • Certification:SGS
  • Material:Alloy
  • Model:Bws-125
  • Key Words:Brake Shoe
  • Color:Yellow

Base Info

  • Model NO.:BWS-125
  • Inner Package:According to Client′s Requirement
  • Main Market:South America Middle East, Africa
  • Raw Material:Non-Asbestos
  • Trial Order:Acceptable
  • Shear Strength:More Than 3.72MPa
  • Average Wear:0.8*10-3mm,Max
  • Adhesive Strength:More Than 98*105PA
  • Transport Package:Carton, Box
  • Specification:SGS
  • Trademark:WINWAY
  • Origin:Hebei
  • HS Code:8714100090
  • Production Capacity:20000PCS,Month


Basic Info.

Model NO. BWS-125 Inner Package According to Client′s Requirement Main Market South America Middle East, Africa Raw Material Non-Asbestos Trial Order Acceptable Shear Strength More Than 3.72MPa Average Wear 0.8*10-3mm/Max Adhesive Strength More Than 98*105PA Transport Package Carton, Box Specification SGS Trademark WINWAY Origin Hebei HS Code 8714100090 Production Capacity 20000PCS/Month

Product Description

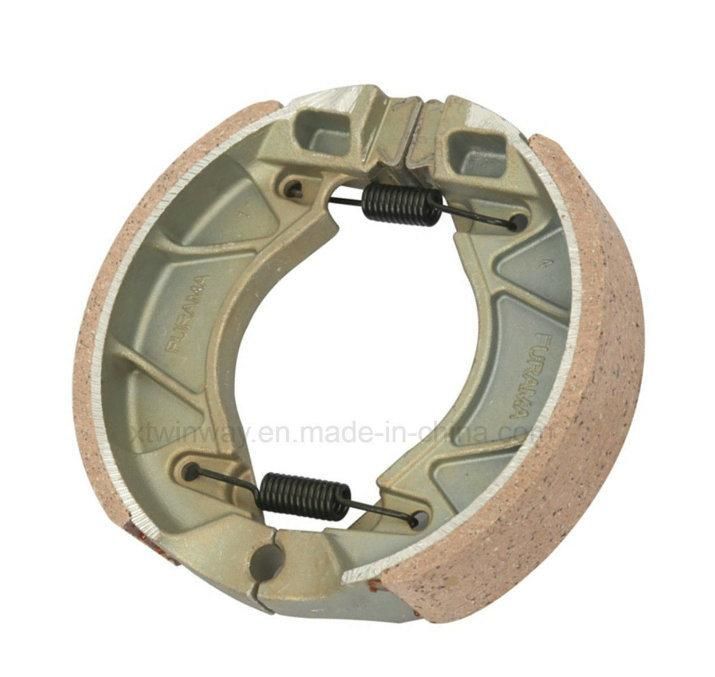

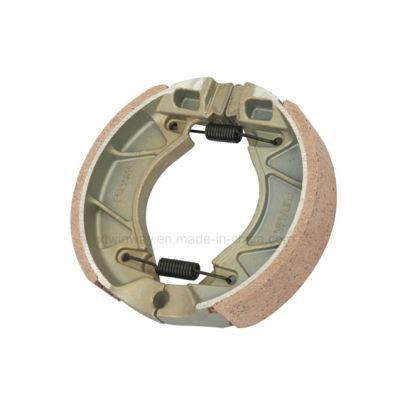

Bws-125 ADC12 Alloy Non-Asbestos motorcycle drum shoe pad brake

The brake oars of this product are fabricated with high quality aluminum alloy material (ADC12). The tholes are designed scientifically and reasonably with equal back force distributed, which makes the tholes have resistance to rupture and shape change advantages. The shoe brake is manufactured with excellent abrasion resisting carbon fiber characterized by resistance to abrasion and high temperature. The shoe brake is cohered with brake oars through import cement heating and the shear strength is 3.72Mpa.
Ww-1007 Bws-125 Non-Asbestos Motorcycle Drum Shoe Pad Brake
Ww-1007 Bws-125 Non-Asbestos Motorcycle Drum Shoe Pad Brake
Ww-1007 Bws-125 Non-Asbestos Motorcycle Drum Shoe Pad Brake

1. The frame is made of high quality aluminum alloy, cast under high pressure, color electroplated for rust resisting.
2. The friction disc is made of synthetic material according to original factory standard, provided with such characteristics as stable friction coefficient, excellent wear resisting performance, and not damaging the wheel hub.
Item NameMotorcycle brake shoe
performancehigh temperature resistance & Wear Resistance
Shear strength≥3.72
Customized Design&SizeAvailable
Materialabrasion resisting carbon fiber
Mixed ContainerAcceptable
Flat button material40# Mn steel
Spring material65# Mn steel
Surface treatmentSandblasting passivation
Package DetailsSmall Box+Cartons
MOQ500 Pairs
Loading PortTianjin/Shanghai
Delivery detail25days,after order confirm
Main marketMiddle east,Africa,South America
Product nameMotorcycle Brake Shoe
Place of OriginHebei, China (Mainland)
Packingcarton or polybag or according to customer's requirements
Features1.No noise, low dust

2.Long lasting working life

3.Proper hardness, strength

4.Good resistance to fade and wear

5.Feel comfortable and sensitive to brake.

6.Ensure the abrasion resistance and long

service life of the products.

7.A complete range of specifications and

dvantage: Good package, Competitive Price, Fast Shipment
Remarks: All of parts can be customized.
Delivery time: Within 20-25 days after the deposit, accept trial order.
Payment term: 30 % TT for deposit, Balance before shipment.

Xingtai Winway Import and Export trading CO., LTD
ADD: 176#Kaiyuan Road, Qiaodong District, Xingtai City, Hebei, P. R. China
