• Model NO.：BT-80
• Certification：ISO9001：2000
• Main Market：South America
• Transport Package：Carton
• Trademark：B. T.
• Origin：China
• HS Code：8407909090
• Production Capacity：50000,Year

Basic Info.

Model NO. BT-80 Certification ISO9001：2000 Main Market South America Transport Package Carton Trademark B. T. Origin China HS Code 8407909090 Production Capacity 50000/Year

Product Description

This single cylinder air cooled 2 stroke 80CC engine is 2020 model .  This cylinder came out in 2019, but it is updated in 2020.  Just like the most of the 48cc/80cc cylinders, the 2019 year cylinder was made by casting techique too. But more and qualified aluminium material,  and good structer help improve the quality of the new barrels. The 2020 year cylinders are fabricated by die casting technique. Its quality become better.  You can judge its quality from the smooth surface of the cylinder and thickness of the its fins. More aluminium make the cylinders bigger, bigger body and thick fins help spread the heat generated during the combustion process. Then It reduce the engine's temperature. Any way, its quality is much better than other cylinders that you can find in the market . Except the barrels, all the parts like pistons, rings, clutchs and CDI have the good quality .

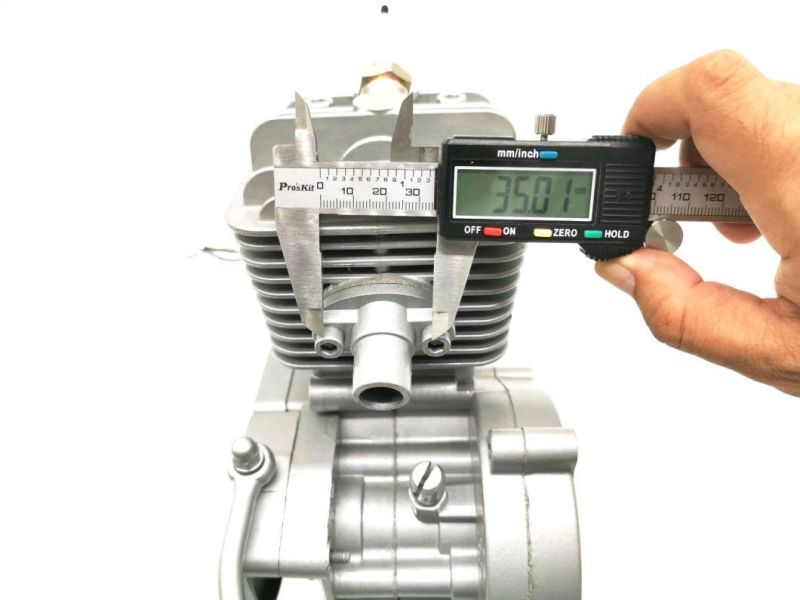

                                                    Intak Ports: 35MM







Product Specification
Engine Type: 2019 Year Single Cylinder Air-Cooled 80CC
Bore & Stroke: 47mm x 40mm
Max Power: 2KW, 5000R/MIN
Compression Ratio: 7:1
Ignition: CDI
Start: Kick Start
Tank Size: 2 Litres
Fuel Consumption: 2.5-3.5L/100Km
Speed: up to 50KM/Hr. Depending On bike size, weight & road Conditions
Type Of Clutch: Rub Bloc Drying
Fuel: Unleaded 91 PETROL Mixed with 2 stroke oil
Start : Kick Start
Tank Capacity: 2L
Lubrication Oil: Two Stroke Oil
Max Speed: 45km/h - 55 km/h
Mixing Ratio of Fuel and Engine oil: 20:1 for new set, 25:1 after 500km



Package included as below

SN	Description	Qty
1	2019 Year 2 Stroke BT-80/80CC MOTOR	1
2	NT careburetor	1
3	Fuel Line	1
4	Fuel Filter	1
5	Gas Tank Switch-Male Type	1
6	2L Gas Tank	1
7	Twist Throttle And Grip	1
8	Throttle Cable	1
9	Clutch Lever	1
10	Clutch Cable	1
11	Large Spring (Heat Shield Spring)	1
12	Extension Spring (Recoil Spring)	1
13	CDI Electron Ignition Coil- High Quality	1
14	Spark Plug and its tool	1
15	Chrome Muffler With Heat Shield	1
16	Outlet Gasket-High Quality	1
17	Big Clamp For Muffler	1
18	Small Clamp For Muffler	1
19	Heavy Duty 415 Chain- High Quality	1
20	Chain Idler With Bearing	1
21	Zinc 44T Sprocket	1
22	Sprocket Clamp Kit	1
23	Engine Mount	1
24	Front Engine Clamp	1
25	Rear Engine Clamp	1
26	Big Engine Clamp Used For Big Frame Tube	1
27	Bolts, Washers and Nuts	1





Notes:

1. U Bracket is not included.
2. Intake Ports: 35MM
3. Package Size: 41*37*18CM
4. G.W. Per Package: 12KGS
