• Model NO.：420
• Pakgaing：Colored Box and Carton Cases
• Colors：Natural, Yellow, Blue, Black, Multi Colors
• Usage：Transimmion Chain, Motorcycle Parts
• Delivey：Stock or 20 Working Days
• Sample：Free Samples
• Services：OEM &ODM Service
• Transport Package：Single Box
• Specification：100L, 102L, 104L, 108L, 110L, 116L, 120L, 128L
• Trademark：SMCC OR NO MARK
• Origin：China Mainland Qingdao
• HS Code：7315119000
• Production Capacity：100000 Meters Per Year

1)Typemotorcycle chain2)MaterialsAlloy/Carbon Steel3)Chain No.420,428,428H,530, etc.4)Structureroller chain5)Functiontransmission chain6)MOQ100meters7)Supply Ability100000 Meter/Meters per year8)Tensile Strengthstandard9)Delivery Timewithin 20 work days after receiving your 30% deposits10)Surface treatmentZinc Plated,Oiling Blooming11)Packingchains packing in polybag, color box and standard export carton, also could be customize

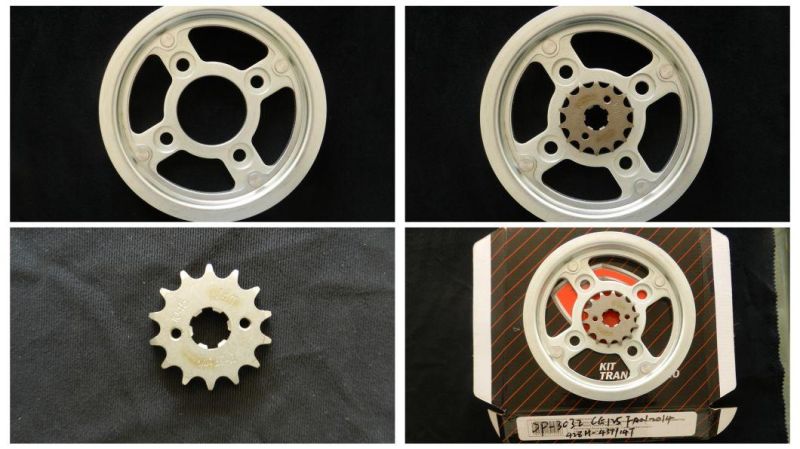

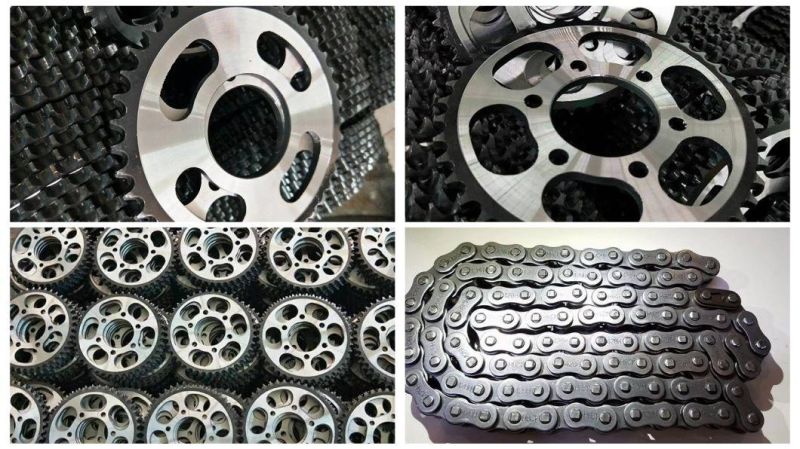

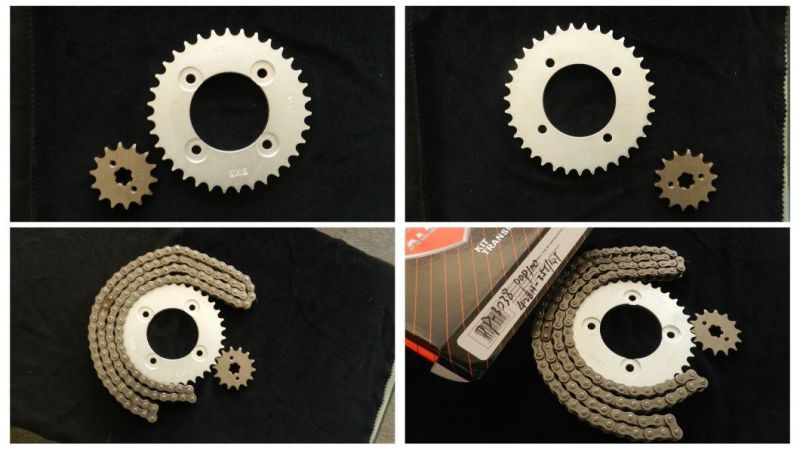

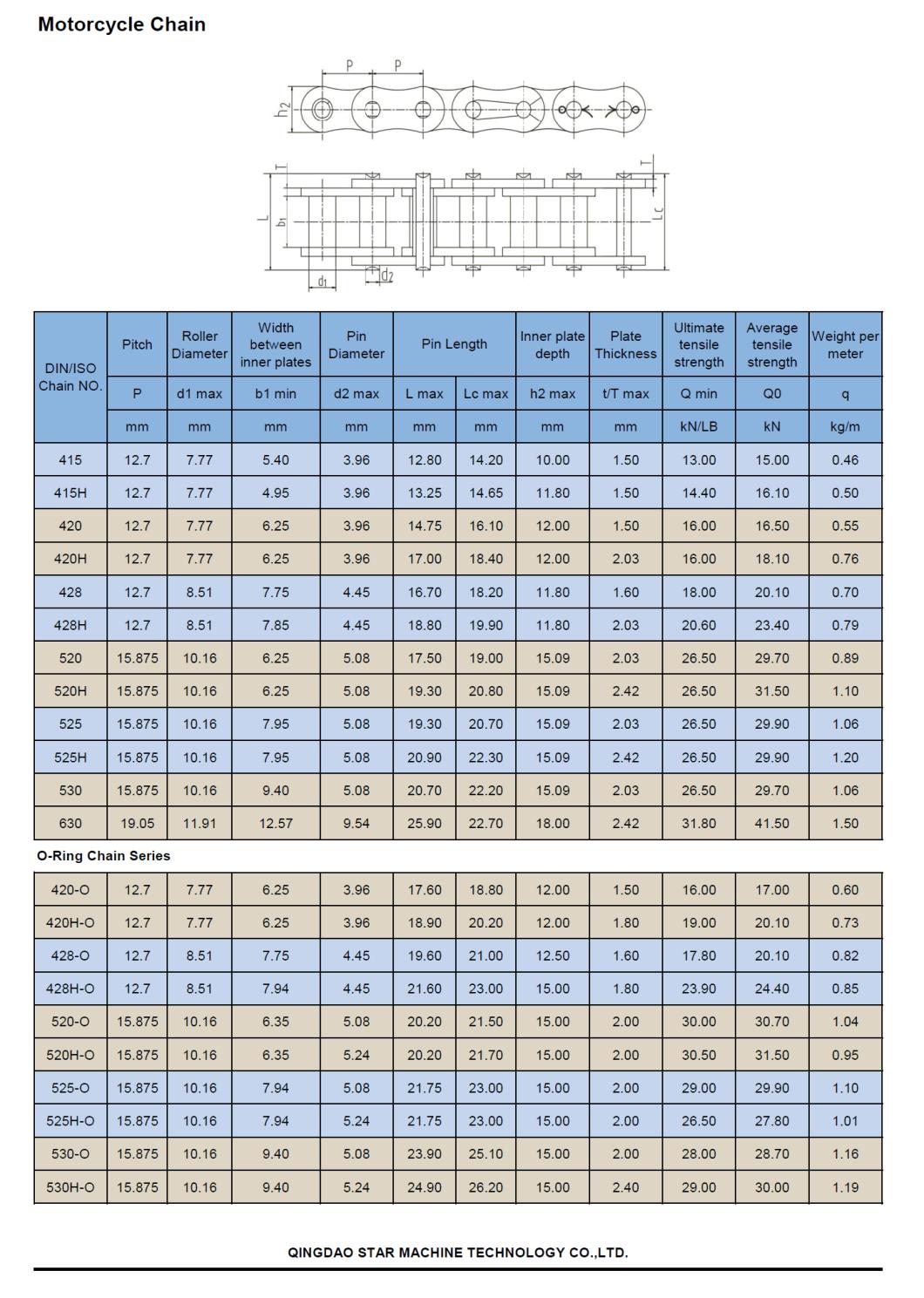

  Product Details:

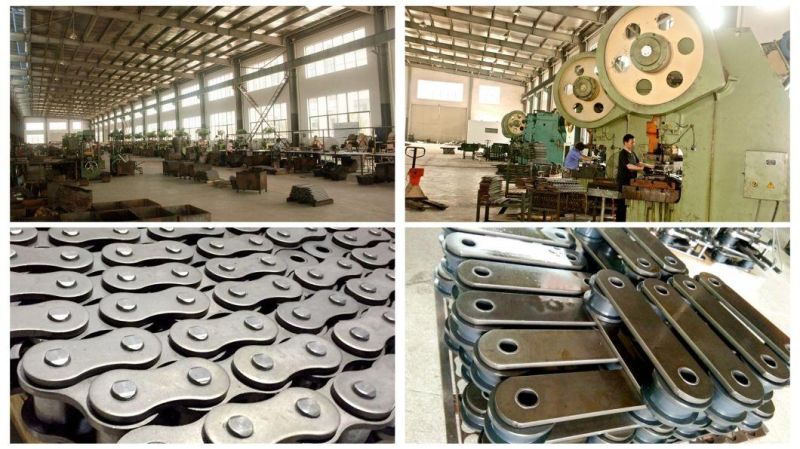

Production Workingshop:


Packing Details:



BASIC INFO

1. Tooth profile of motorcycle sprocket

The tooth profile of the sprocket must ensure that the chain enters and leaves the mesh smoothly and energy-savingly, minimizes the impact and contact stress of the chain links during the meshing process, and is easy to process.
The commonly used motorcycle sprocket tooth profile is a three-arc straight tooth profile.

2. Sprocket structure
Small-diameter sprockets are usually integral, while medium-diameter sprockets are mainly spokes. In order to facilitate handling, installation and weight reduction, holes are made in the spoke plate. Large-diameter sprocket can be made into a combined type. The wheel core can be made of different materials! For example: C45, stainless steel and other materials.

3. Sprocket material

The sprocket material should ensure that the gear teeth have sufficient strength and wear resistance, so the surface of the sprocket teeth usually becomes hard.


ASSEMBLY AND MAINTENANCE

1. Assembly requirements for motorcycle sprockets. The tightness of the chain should be appropriate. Too tight will increase power consumption, and the bearing will wear; the sprocket is too loose, it is easy to jump off the chain. The tightness of the chain is: lifting or pressing down from the middle of the chain, it is about 2%-3% of the center distance between the two sprockets.

2. When the motorcycle sprocket is installed on the shaft, it must not swing or deflect. In the same gearbox assembly, the end faces of the two sprockets should be on the same plane. When the center distance of the sprocket is less than 0.5 meters, the deviation can be 1 mm; when the center distance of the sprocket is greater than 0.5 meters, the deviation can be 2 mm. However, there must be no friction on the sides of the sprocket teeth. If the deviation of the two wheels is too large, it is easy to cause the chain to break and accelerate wear. When replacing the sprocket, you must pay attention to check and adjust the offset.

3. After the motorcycle sprocket is severely worn, the new sprocket and the new chain should be replaced at the same time to ensure good meshing. Sprockets or chains cannot be replaced individually. Otherwise, it will cause poor meshing and accelerate the wear of new sprocket or new chain. When the tooth surface of the sprocket wears to a certain degree, it should be turned over and used in time (referring to the sprocket with adjustable surface) to extend the use time.

4. The chain of a new motorcycle is too long or tightened after use, making it difficult to adjust. You can delete the chain link according to the situation, but it must be an even number. The chain link should pass through the rear of the sprocket, the lock plate should be inserted into the outside, and the opening of the lock plate should face the opposite direction of rotation.

5. During work, motorcycle chains should be filled with lubricating oil in time. Lubricant must enter the matching gap between the roller and the inner sleeve to improve working conditions and reduce wear.

6. The old sprocket of the motorcycle cannot be mixed with the new sprocket, otherwise it is easy to produce impact in the transmission and damage the sprocket.

7. When storing the motorcycle for a long time, please remove the sprocket and clean it with kerosene or diesel, then apply engine oil or butter, and then store it in a dry place.

8.The motorcycle chains operate in unclean environments, and thus the wearing surfaces (that is, the pins and bushings) are safe from precipitation and airborne grit, many even in a sealed environment such as an oil bath, and for size or operational reasons cannot be sealed. Motorcycle chains will necessarily have relatively high rates of wear, particularly when the operators are prepared to accept more friction, less efficiency, more noise and more frequent replacement as they neglect lubrication and adjustment.

Many oil-based lubricants attract dirt and other particles, eventually forming an abrasive paste that will compound wear on chains. This problem can be circumvented by use of a "dry" PTFE spray, which forms a solid film after application and repels both particles and moisture.


PAKAGE AND DELIBERY

1. Before packing the motorcycle sprocket, necessary anti-rust measures must be taken, such as: oiling, blackening, galvanizing, chrome plating, nickel plating, waxing, etc.;

2. To prevent the surface of the motorcycle sprocket from being bumped and scratched, the inner packaging adopts foam bag packaging.

3. The outer packaging of motorcycle sprocket is usually customized packaging for customers. For example: color box packaging, color plastic bag packaging and customer logos on motorcycle sprocket chain sleeves...


WHY CHOOSE US

1. Reliable Quality Assurance System

2. Cutting-Edge Computer-Controlled CNC Machines

3. Bespoke Solutions from Highly Experienced Specialists

4. Customization and OEM Available for Specific Application

5. Extensive Inventory of Spare Parts and Accessories

6. Well-Developed Worldwide Marketing Network

7. Efficient After-Sale Service System

The 219 sets of advanced automatic production equipment provide guarantees for high product quality. The 167 engineers and technicians with senior professional titles can design and develop products to meet the exact demands of customers, and OEM customizations are also available with us. Our sound global service network can provide customers with timely after-sales technical services.

We are not just a manufacturer and supplier, but also an industry consultant. We work pro-actively with you to offer expert advice and product recommendations in order to end up with a most cost effective product available for your specific application. The clients we serve worldwide range from end users to distributors and OEMs. Our OEM replacements can be substituted wherever necessary and suitable for both repair and new assemblies.
