• Model NO.：HPM5000B
• Cooling Type：by Air
• Controller：48V Sinewave Controller
• Throttle：Foot Throttle,Twist Throttle
• Motor Type：BLDC
• Transport Package：Carton with Foam
• Specification：HPM5000B
• Trademark：GOLDEN MOTOR
• Origin：China
• HS Code：85013200
• Production Capacity：10000,Month

Voltage:24V/36V/48V/72V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. Type: 48/72V5000W
Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN
Electric motorcycle with golden motor 5KW bldc motor kit

Powerful, Efficient and Reliable BLDC Motors

We are leading manufacturer of general-purpose brushless dc (BLDC) motors with power range from 200W to 20KW, and the voltage range from 24V
to 120V DC. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.

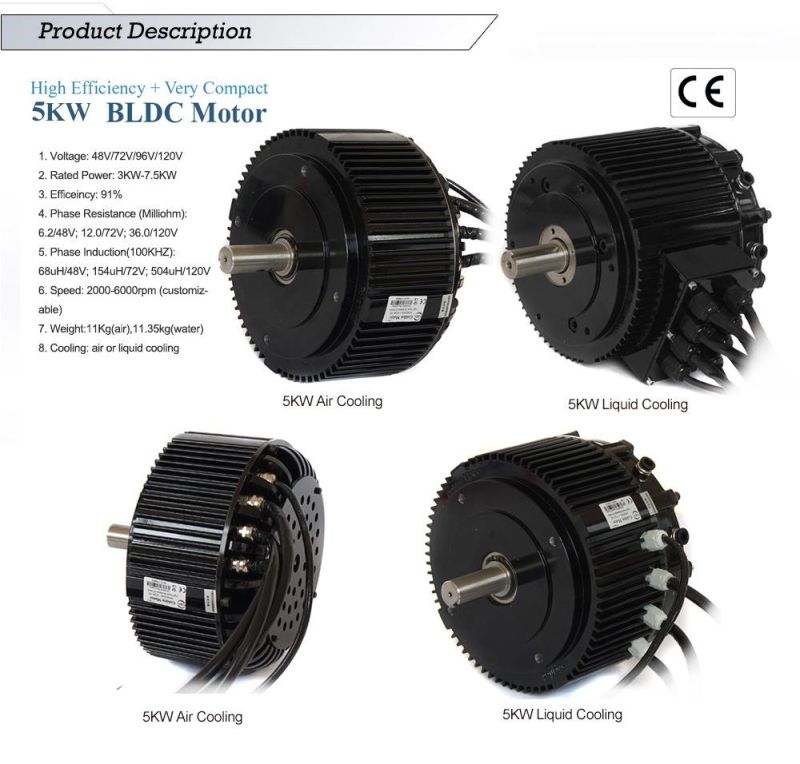

Model: HPM5KA -- High Power BLDC Motor

1.Voltage:48V/72V
2 Rated Power:5KW
3.Efficeincy: 88%
4.Speed: 2000-6000rpm (customizable)
5.Casing: AluSmartum
6.Length (height): 126mm
7.Diameter: 206mm
8.Shaft: customizable
9. Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
10 Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.


Long working life (>20,000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage : 48V-120 VDC
Rated power : 5KW
Rated speed: 2000-6000 rpm
Stepless speed control, dual-direction

NEW!!  BLDC Motor  (HPM5KA)  Air cooling	Voltage:48V/72V Rated Power:5KW Efficeincy: 88% Speed: 2000-6000rpm (customizable) Casing: AluSmartum  Length (height): 126mm  Diameter: 206mm Shaft: customizable  Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan  Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
NEW!!  BLDC Motor  (HPM5KL)  Liquid cooling	Voltage:48V/72V Rated Power:5KW Efficeincy: 88% Speed: 2000-6000rpm (customizable) Casing: AluSmartum  Length (height): 126mm  Diameter: 206mm Shaft: customizable  Features: Compact design,Water resistent, Stainless Steel Shaft, Liquid Cooling Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.

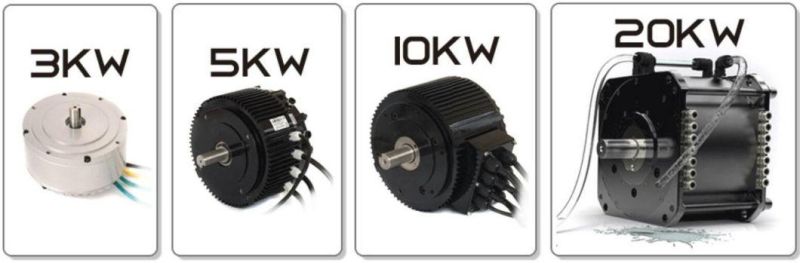

Pictures of the 3KW -10KW BLDC Motor

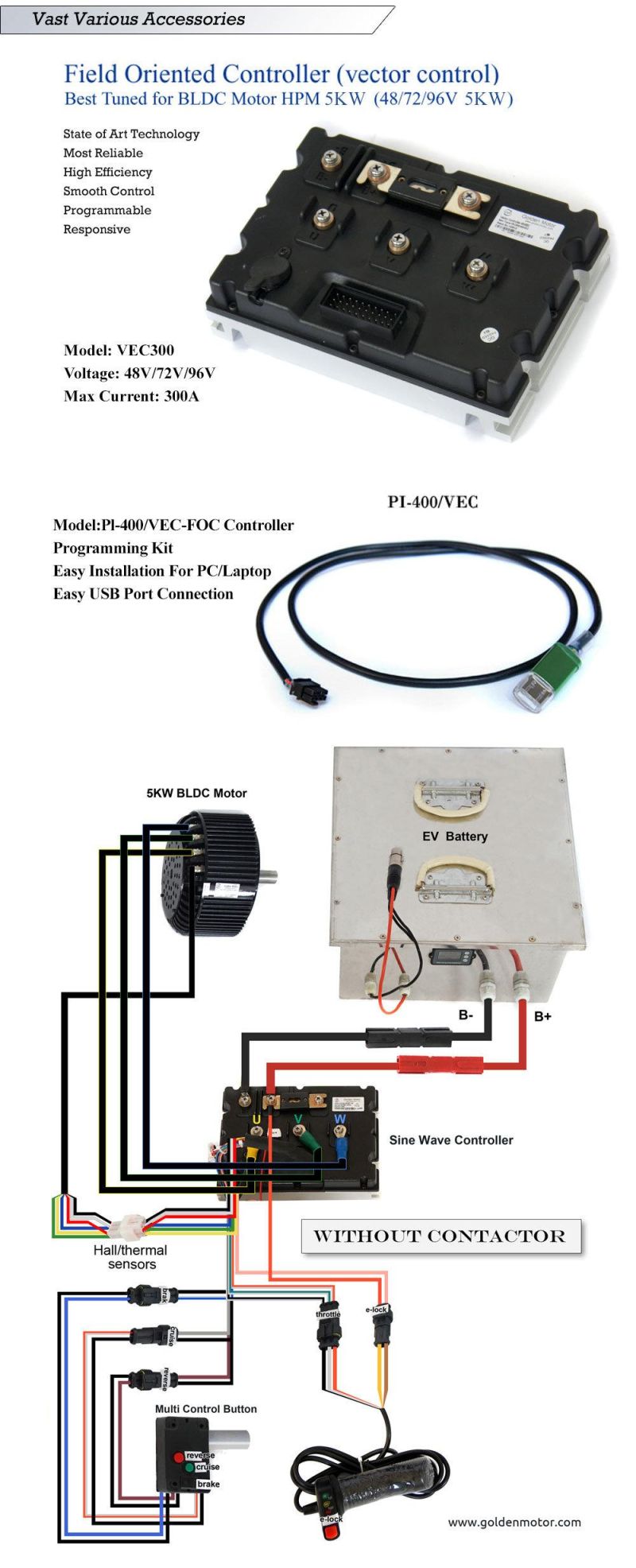

VEC300
https://goldenmotorcz.en.made-in-china.com/product/MXKnNQHvZYcu/China-New-Programmable-3kw-to-20kw-Innovative-Sine-Wave-Motor-Controller.html




3KW, 5KW, 10KW BLDC Motor for Electric Motorcycle from Our Customers
