• Model NO.：5KW air cooling
• Voltage：48V 72V 96V
• Controller：New Foc Controller
• Size：Very Compact
• Cooling Way：Fan Cooled and Liquid Cooled for Option
• Certificated：Ce
• Program：Yes
• Application：Electric Motorcycle
• Transport Package：Carton
• Specification：5kw
• Trademark：golden motor
• Origin：China
• HS Code：85013200
• Production Capacity：50000,Month

Basic Info.

Model NO. 5KW air cooling Voltage 48V 72V 96V Controller New Foc Controller Size Very Compact Cooling Way Fan Cooled and Liquid Cooled for Option Certificated Ce Program Yes Application Electric Motorcycle Transport Package Carton Specification 5kw Trademark golden motor Origin China HS Code 85013200 Production Capacity 50000/Month

Product Description

We are leading manufacturer of general-purpose brushless dc (bldc) motors with power range from 200w to 20kw, and the voltage range from 24v to 120v dc. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.


Golden Motor leading technology BLDC motors for  electric motorcycle

Long working life (>20, 000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage: 72-120 vdc
Rated power: 20-25kw
Rated speed: 3200-5000 rpm
Stepless speed control, dual-direction





High reliability FOC controller, very smooth controller,high torque, high efficiency,




Specification :

ITEM NO.	DESCRIPTION	SPECIFICATION	Products Dimension	PACKING SIZE	G.W	N.W

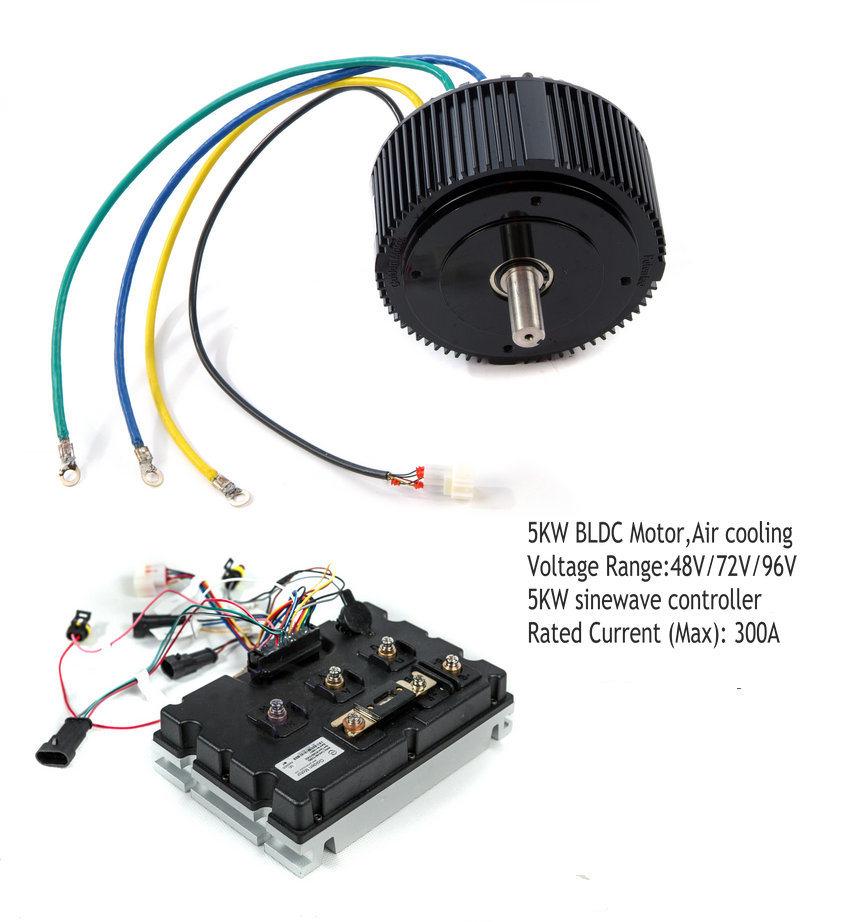

HPM5000A-48V	BLDC MOTOR	48V 5KW Air cooled /Water cooled optional	Diamr: 206mmX Height: 126mm	38*32*32CM	11.5KGS	10.5KGS
VEC300H-48V	Sinewave controller	48V 5KW BLDC motor controller,Rate current 120A,Max phase current 300A	190*180*50mm	29*29*20CM	3.5KGS	3KGS

Electric motorcycle Demo Videos
