• Model NO.：FX-0010
• Product Name：AGM Separator for Lead Acid Storage Battery
• Thickness：0.3-5.0mm
• Sample：Avaliable
• Size：Customized
• Transport Package：Standand Export Carton
• Specification：ISO
• Trademark：FX
• Origin：China
• HS Code：701990900
• Production Capacity：50000sqm,Month

Basic Info.

Model NO. FX-0010 Product Name AGM Separator for Lead Acid Storage Battery Thickness 0.3-5.0mm Sample Avaliable Size Customized Transport Package Standand Export Carton Specification ISO Trademark FX Origin China HS Code 701990900 Production Capacity 50000sqm/Month

Product Description

AGM Battery Separator for Lead-Acid Storage Battery, Fiberglass Separator, Insulation Sheet, Insulated Separator Paper, Battery Separator, VRLA Storage Battery AGM Separator, AGM Separator

The AGM separator is one kind of environmental-protection material which is made of micro glass fiber (Diameter of 0.6-6μ M). It is white, innocuity, tastelessness and specially used in Value Regulated Lead-Acid batteries (VRLA batteries).The AGM separator has good acid resistance, equal thickness, high volume porosity, enough tensile strengthen both in machine direction and cross direction, good compression ability to ensure the high plate group pressure, and good insulative ability etc. It can absorb enough electrolyte, supply the channels for hydrogen and oxygen free passing to react, prevent the active materials from falling off, slow the creation of lead crystal, and reduce the loss of electrolyte in charge & loss maintenance, it is also has a long using life.

Package:

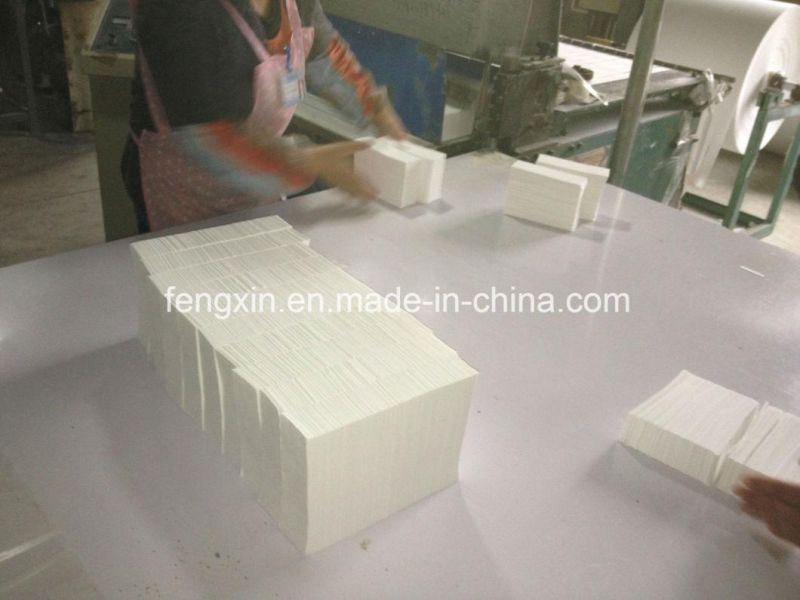

The AGM separator is supplied in rolls or pieces, and packed with carton after covered with the plastic film.

Application:
UPS power supply, Electrical power system, Railway signal, Telecommunication equipment, Emergency lighting, Fire control and Alarming system, Generator starting, Electrical car and Motor-cycle, Value-regulated, Solar & Wind power.

Specification:
Thickness: 0.3mm-5.0mm
Width and length can be made according to your requests.
Package: Carton packing

Thickness	mm	±5%d
Electrical Resistance	Ω.dm2	≤0.00050d
Tensile Strength	kN/m	≤2.0mm ≥2.0mm
Basic Weight	g/m2.mm	20Kpa
Max Pore Diameter	µm	≤20µm
Pressurzing Acid Absorption	%	≥550
Porosity	%	≥90
Acid-Wicking Height	mm/5min	≥90mm/5min
