Cqjb Motorcycle Spare Parts Monkey Modified Motorbike 12V Speedometer
Chongqing Jiuben Commerce and Trade Co., Ltd.- Warranty：1year
- Type：Motorcycle Speedometer
Base Info
- Model NO.：monkey 12V 2-4 cylinder
- Certification：CCC
- Material：ABS
- Product Name：Cqjb Motorcycle Spare Parts Honda Cbt125 Cg25meter
- Fit for：Motorcycle Under 400cc
- MOQ：50PCS
- Quality：a-Class
- Specifications：19*15*9.5cm 0.62kg
- Color：Black
- Packing：Plastic Bag +Paper Box
- Display Screen：Speed,Fuel Level,Clock,High Beam etc.
- Backlight Color：7colors Change
- Feature：Waterproof and Shockproof
- Design：Integrated Design Using Digital Signal Processing
- LCD Screen：Anti-UV and Anti-Glare LCD Screen
- Logo：Accept Customization
- OEM/ODM：Accept Customization
- Shipping：Sea, Air, Railway
- Transport Package：Carton
- Specification：19*15*9.5CM 0.62KG
- Trademark：CQJB
- Origin：Chongqing China
- HS Code：8714100090
- Production Capacity：500000,Year
- Package size per unit product：20.00cm * 15.00cm * 10.00cm
- Gross weight per unit product：1.500kg
Description
Overview

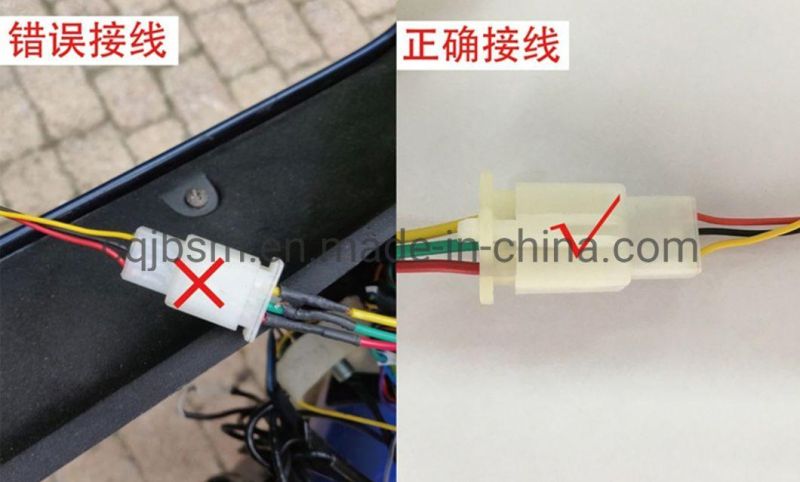

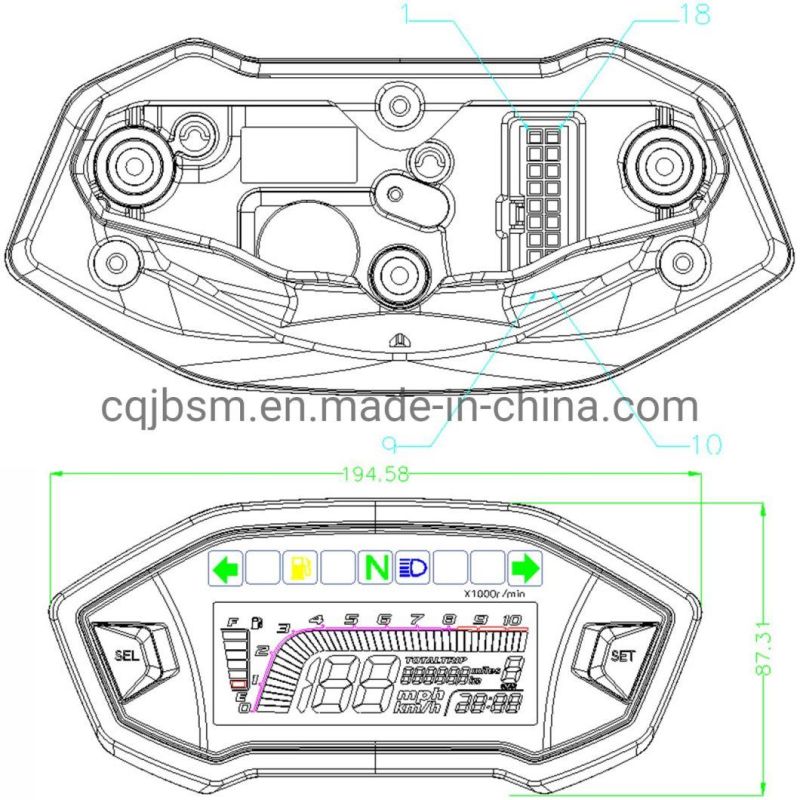

Installation settings:
Light blue: turn right
Yellow/Blue: RPM
Red: battery + (clock)
Blue: high beam
Green/white: water temperature
Green: negative
Orange: turn left
Blue/white: fuel signal
Black: key switch
Green/Red: N equipment
Pink/Red: 1 gear
Blue/Red: 2 equipment
Green/Black: 3 equipment
Yellow/Red: 4 gears
Gray: 6 gears
Brown/red: a symbol of fault
Its speed sensor
?1?77?1?79 background parameter settings
A. Press and hold the left button first, and then unlock the door. After the LCD self-test is completed, jump to the background setting interface. The default display is 0421 2 15 seconds, no operation will automatically exit the background settings.
B, 042 is the vehicle speed frequency, 42Hz to 63km/h.
Frequency calculation: 1000÷the circumference of a tire roll×the number of sensor signals÷60.
For example: 110/70-R17 tire circumference 1.86 meters and 2 signal sensors
1000÷1.86×2÷60=17.91, take the integer 17.
(042) is the settable speed value:
Long press the left button for 3 seconds 042 the hundreds digit 0 flashes, short press the left button to increase 1 (adjustment range 0-9),
Press and hold the left button for 3 seconds to switch to 10 digits and flash 4 times. Short press the left button to increase by 1 (adjustment range 0-9),
Then long press the left button for 3 seconds to switch to the unit number 2 flashing, short press the left button to add 1 (adjustment range 0-9),
Press and hold the left button to switch to the next 1, and automatically exit the background setting without operation within 15 seconds.
C, 1 means fuel sensor 1 means fuel sensor resistance value 8-98Ω; 5 means fuel sensor resistance value 33-566Ω.
Short press the left button to display 5, then short press to display 1, long press the left button to switch to the back of 2, and it will automatically exit the background setting if there is no operation within 15 seconds.
D, 2 represents the number of rotating cylinders. 2 means 16.6 Hz corresponds to 1000 rpm, 4 means 33.3 Hz corresponds to 1000 rpm.
Short press the button on the left to display 4, then the short news displays 2, then press the button on the left and hold for 3 seconds to save and exit the background setting interface (or automatically exit the background setting interface without operating for 15 seconds), the working interface displayed by the instrument .
Extension variable frequency operation:
For example: 220/50-R17 tires with a circumference of 2.05 meters and 2 signal sensors
1000÷2.05×2÷60=16.25, take the integer 16. 16 Hz to 63 km/h. Use the button to modify to 016, then long press the left button switch, and then long left button to switch to 2, then press the left button and hold for 3 seconds to save and exit the background setting interface (or automatically exit the background setting at 15 seconds No operation inside), the working interface displayed by the instrument.
A: We always take the interests of customers as the starting point, truly do for customer service, customer to solve problems.
Q2: When can get the price ?
A:The quotation will be answered after both parties confirm the specific questions such as product model.
Q3: How can get a sample to check quality?
A:Some samples could be free for you , for the freight we can discuss after. Usually, the sample will be sent within one week. It
depends on the stock.
Q4:When will the goods be delivered?
A:After the goods are confirmed through negotiation, we will send the sample list within 3-5 days. We will send the bulk order
with customized products within 30 days.
Q5:What is your terms of payment?
A: 1.Full payment before delivery .We'll show you the photos of before you pay the balance.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.Click Here for Free Samples
Product Description

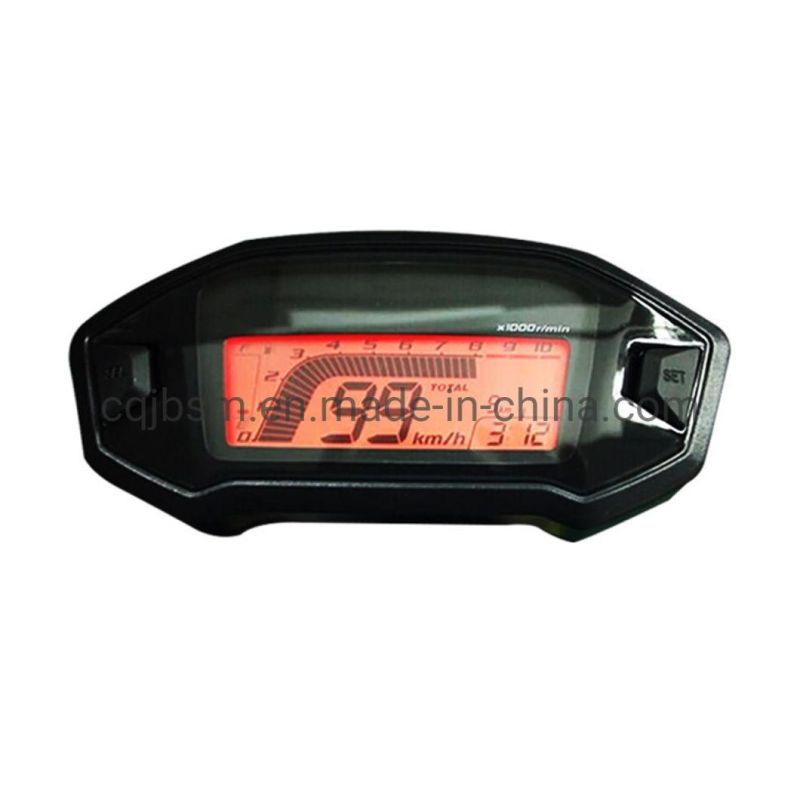

Detailed PhotosUniversal motorcycle LCD digital speedometer odometer backlit motorcycle is 2,4 cylinder 1300r/min, large display 199 kilometersInstallation settings:
Light blue: turn right
Yellow/Blue: RPM
Red: battery + (clock)
Blue: high beam
Green/white: water temperature
Green: negative
Orange: turn left
Blue/white: fuel signal
Black: key switch
Green/Red: N equipment
Pink/Red: 1 gear
Blue/Red: 2 equipment
Green/Black: 3 equipment
Yellow/Red: 4 gears
Gray: 6 gears
Brown/red: a symbol of fault
Its speed sensor
?1?77?1?79 background parameter settings
A. Press and hold the left button first, and then unlock the door. After the LCD self-test is completed, jump to the background setting interface. The default display is 0421 2 15 seconds, no operation will automatically exit the background settings.
B, 042 is the vehicle speed frequency, 42Hz to 63km/h.
Frequency calculation: 1000÷the circumference of a tire roll×the number of sensor signals÷60.
For example: 110/70-R17 tire circumference 1.86 meters and 2 signal sensors
1000÷1.86×2÷60=17.91, take the integer 17.
(042) is the settable speed value:
Long press the left button for 3 seconds 042 the hundreds digit 0 flashes, short press the left button to increase 1 (adjustment range 0-9),
Press and hold the left button for 3 seconds to switch to 10 digits and flash 4 times. Short press the left button to increase by 1 (adjustment range 0-9),
Then long press the left button for 3 seconds to switch to the unit number 2 flashing, short press the left button to add 1 (adjustment range 0-9),
Press and hold the left button to switch to the next 1, and automatically exit the background setting without operation within 15 seconds.
C, 1 means fuel sensor 1 means fuel sensor resistance value 8-98Ω; 5 means fuel sensor resistance value 33-566Ω.
Short press the left button to display 5, then short press to display 1, long press the left button to switch to the back of 2, and it will automatically exit the background setting if there is no operation within 15 seconds.
D, 2 represents the number of rotating cylinders. 2 means 16.6 Hz corresponds to 1000 rpm, 4 means 33.3 Hz corresponds to 1000 rpm.
Short press the button on the left to display 4, then the short news displays 2, then press the button on the left and hold for 3 seconds to save and exit the background setting interface (or automatically exit the background setting interface without operating for 15 seconds), the working interface displayed by the instrument .
Extension variable frequency operation:
For example: 220/50-R17 tires with a circumference of 2.05 meters and 2 signal sensors
1000÷2.05×2÷60=16.25, take the integer 16. 16 Hz to 63 km/h. Use the button to modify to 016, then long press the left button switch, and then long left button to switch to 2, then press the left button and hold for 3 seconds to save and exit the background setting interface (or automatically exit the background setting at 15 seconds No operation inside), the working interface displayed by the instrument.
